20ft 2Axle Container Semi Trailer, offer the container trailers to maximize the payload.Flatbed container trailer adopt advanced design concept. After fully understanding and analysing the transportation environment in different countries. Also the length of the trailers can be customized, like 45ft, 48ft, or 53ft container transportation trailers.

Skeleton Container semi trailer is designed for stevedoring and transporting 1x40', 1x 20'or 2x20'ISO Cargo Containers and loose cargos. To make sure the servise life of the semi trailers, all the apare parts we adopt are World Famous brand. We use famous German WABCO braking valve will definitely shorten the Braking Distance, to make the safety of the trailers and the drivers. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

Loading Capacity	25-35tons
Axle	2 axles ,BPW/FUWA axle4
Tyre	8 pieces, 10.00R20,12R22.5
Dimensions(LxWxH)	7000mm x 2500 x 1550mm
Tare weight	5tons
Axle spacing	1310mm
Rims	8.5-20, 9.0-20
Suspension System	Leaf spring Suspension/Air suspension
Brake System	Dual line pneumatic brake system with WABCO emergency relay valve
Main Beam	Height 480mm Q345 carbon steel
Chassis	upper 14mm, lower 16mm. Mid web 8mm
Kingpin	2' or 3.5' interchangeable,JOST brand
Twist locks	12 units ISO THT brand
Landing Gear	28 Tons , Two speed manual operation
Electrical System	1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard
Lights and Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Painting	Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available
Tool Box	One tool box with a set of standard trailer tools
Spare Tyre Carrier	One piece or two pieces

Las etiquetas:

Productos

Cuota De Producción:	1 unidad
Embalaje Estándar:	Estándar de exportación
Período De Entrega:	25 días
Método De Pago:	T/T

Información detallada

Descripción del producto

Información detallada

Lugar de origen

Porcelana

Nombre de la marca

AOTONG

Certificación

ISO,CCC

suspensión:

Suspensión mecánica o de aire

Especificaciones de neumáticos:

12R22.5

Haz principal:

Servicio pesado I Beam.

Alfiler:

2 ''/3.5 '' Tipo de perno

Sistema de frenado:

Cámara de aire doble, válvula de freno, 45 láscinos de aire; ABS opcional

Eléctrico:

Luz LED, 7 maneras, 24 V

Cuadro:

Platagia y óxido limpio, 1 capa de pintura primaria, 2 capa de pintura de acabado

Cantidad de orden mínima:

1 unidad

Detalles de empaquetado:

Estándar de exportación

Tiempo de entrega:

25 días

Condiciones de pago:

T/T

Descripción del producto

Loading Capacity	25-35tons
Axle	2 axles ,BPW/FUWA axle4
Tyre	8 pieces, 10.00R20,12R22.5
Dimensions(LxWxH)	7000mm x 2500 x 1550mm
Tare weight	5tons
Axle spacing	1310mm
Rims	8.5-20, 9.0-20
Suspension System	Leaf spring Suspension/Air suspension
Brake System	Dual line pneumatic brake system with WABCO emergency relay valve
Main Beam	Height 480mm Q345 carbon steel
Chassis	upper 14mm, lower 16mm. Mid web 8mm
Kingpin	2' or 3.5' interchangeable,JOST brand
Twist locks	12 units ISO THT brand
Landing Gear	28 Tons , Two speed manual operation
Electrical System	1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard
Lights and Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Painting	Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available
Tool Box	One tool box with a set of standard trailer tools
Spare Tyre Carrier	One piece or two pieces

Las etiquetas:

Semi-remolque con lecho bajo

Semiremolque de contenedor

Remolque de la pared lateral semi

Semiremolque de transporte de vehículos

Semiremolque de descarga y desviación

Semi-remolque lateral de Van&Curtain

Cerca Semi Trailer

Semiremolque para el transporte de animales

del petrolero remolque semi

Remolque agrícola y otro remolque completo

El camión Howo

cabeza del tractor

Trailer especial

Partes de repuesto de remolque

Nuevos vehículos de la energía

Vehículos especiales

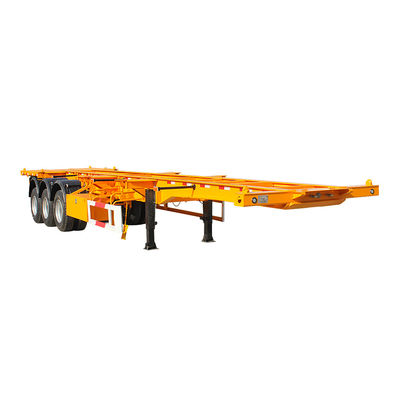

20 Feet Container Skeleton Semi Trailer 3 Axles Port Container Transportation
