Main size
Overall length
15000mm

Overall width
2700mm

Overall height
3100mm

Loading capacity
Loading 8 units of cars.
Capacity of 25Tons.

Chassis
Main beam
Material of high strength steel T700.
Height 400mm.
Welded by automatic submerged-processes.

Main cross beam
Material is high strength steel T700.
Welded by automatic submerged-arc processes

Posts
Main posts
Material of high tensile steel T700.
5 pairs of each trailer

Side bars
Material is high strength steel T700.
Multi numbers installed.

Floor
Material
Manganese steel plate floor thickness of 3mm.
Multi holes designed.
Yellow and red painted track.

Landing gear
20T model landing gear, brand Yahua, with static capacity of 50T.
Single speed linked type, operated at one side.

King pin
2 inches size, installed on the kingpin plate.
JOST brand.

Axle
2 sets of 13T model axles.
Axle beam 1840mm.
Axle loading 13000kgs.

Tire
Tire sized 10R22.5, Double Star or Triangle brand.
4 sets of tires assembled with wheel rim per trailer.

Wheel rim
Sized 8.0-20, Zhengxing brand.
4 pcs of wheel rim per trailer.

Hydraulic
Cylinders
5 units (2 sets of each unit) of hydraulic cylinders installed, to lift the second floor and cars.
Youggu brand.

First unit
At the front post, out&back, extend 600mm.

Second unit
At the end post of gooseneck, out&back, extend 600mm.

Third unit
Under the aircraft style plate, to lift single car, out&back, extend 900mm.

Forth unit
At the post in front of tire, out&back, extend 900mm.

Fifth unit
At the end post of trailer, only out, back by the cars' gravity, extend 1600mm.

Suspension
Mechanical steel suspension system, double axles type.
4 sets of leaf springs installed.

Brake sysem
Dual line air drum brake system with T30/30 type double brake chambers on each axle.

Light system
12v/24v light system.
LED lights, including side, rear, turning.

ABS system
ABS system installed, HN or Kemi brand.

Others
Color optional.
One set of standard tools in tool box.
One bag of belts for firming the cars.

2-Axle Car Carrier Trailer 18T-28T Capacity with ABS 0

2-Axle Car Carrier Trailer 18T-28T Capacity with ABS 1

Las etiquetas:

low bed semi trailer,

semi lowbed trailer,

low bed tractor trailer

Productos recomendados

El video

2 ejes 28 toneladas de montaje bajo para camiones de montaje bajo semi remolque para el transporte de equipos pesados

Contacta ahora

El video

3 Ejes delantero de carga baja del remolque con cuello de ganso hidráulico desmontable y ABS opcional

Contacta ahora

El video

Carga útil máxima de 120 toneladas Triaxles Semi remolque de carga pesada con rampa y paredes laterales

Contacta ahora

El video

3-Axle 13T Car Carrier Semi Trailer with 500mm Main Beam

Contacta ahora

El video

Precio de cama baja Transportador de excavadoras Camión semirremolque de plataforma baja con rampa hidráulica Multi 3 4 5 ejes 40 60 80 120 100 toneladas en venta

Contacta ahora

El video

Two, Three, Four Axle Gooseneck Flatbed Semi Truck with Low Deck, Lowboy, Loader, or Low Bed Semi Trailer

Contacta ahora

El video

Heavy-duty Customizable 3-Axis 60-120 Tons Foldable Construction Machinery Transportation Low-bed Trailer Trailer Truck

Contacta ahora

DETALLES DE LOS PRODUCTOS

Productos

Semi-remolque con lecho bajo

Semiremolque de contenedor

Remolque de la pared lateral semi

Semiremolque de transporte de vehículos

Semiremolque de descarga y desviación

Semi-remolque lateral de Van&Curtain

Cerca Semi Trailer

Semiremolque para el transporte de animales

del petrolero remolque semi

Remolque agrícola y otro remolque completo

El camión Howo

cabeza del tractor

Trailer especial

Partes de repuesto de remolque

Nuevos vehículos de la energía

Vehículos especiales

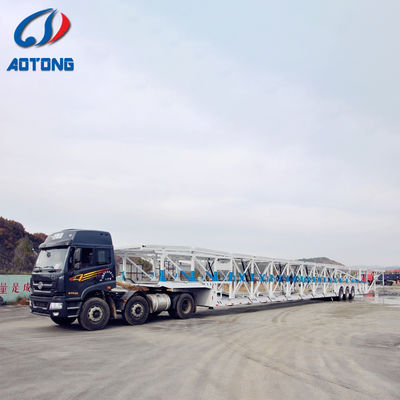

2-Axle Car Carrier Trailer 18T-28T Capacity with ABS

Cuota De Producción:	1 unidad
Embalaje Estándar:	Estándar de exportación
Período De Entrega:	25 días
Método De Pago:	T/T

Información detallada

Descripción del producto

Información detallada

Lugar de origen

China.

Nombre de la marca

AOTONG

Certificación

ISO,CCC

suspensión:

Suspensión mecánica o de aire

Especificaciones de neumáticos:

12R22.5

Haz principal:

Servicio pesado I Beam.

Alfiler:

2 ''/3.5 '' Tipo de perno

Sistema de frenado:

Cámara de aire doble, válvula de freno, 45 láscinos de aire; ABS opcional

Eléctrico:

Luz LED, 7 maneras, 24 V

Cuadro:

Platagia y óxido limpio, 1 capa de pintura primaria, 2 capa de pintura de acabado

Cantidad de orden mínima:

1 unidad

Detalles de empaquetado:

Estándar de exportación

Tiempo de entrega:

25 días

Condiciones de pago:

T/T

Resaltar

2-axle car carrier trailer with ABS

lowbed semi trailer 18T-28T capacity

heavy duty car carrier trailer ABS

Descripción del producto

Main size
Overall length
15000mm

Overall width
2700mm

Overall height
3100mm

Loading capacity
Loading 8 units of cars.
Capacity of 25Tons.

Chassis
Main beam
Material of high strength steel T700.
Height 400mm.
Welded by automatic submerged-processes.

Main cross beam
Material is high strength steel T700.
Welded by automatic submerged-arc processes

Posts
Main posts
Material of high tensile steel T700.
5 pairs of each trailer

Side bars
Material is high strength steel T700.
Multi numbers installed.

Floor
Material
Manganese steel plate floor thickness of 3mm.
Multi holes designed.
Yellow and red painted track.

Landing gear
20T model landing gear, brand Yahua, with static capacity of 50T.
Single speed linked type, operated at one side.

King pin
2 inches size, installed on the kingpin plate.
JOST brand.

Axle
2 sets of 13T model axles.
Axle beam 1840mm.
Axle loading 13000kgs.

Tire
Tire sized 10R22.5, Double Star or Triangle brand.
4 sets of tires assembled with wheel rim per trailer.

Wheel rim
Sized 8.0-20, Zhengxing brand.
4 pcs of wheel rim per trailer.

Hydraulic
Cylinders
5 units (2 sets of each unit) of hydraulic cylinders installed, to lift the second floor and cars.
Youggu brand.

First unit
At the front post, out&back, extend 600mm.

Second unit
At the end post of gooseneck, out&back, extend 600mm.

Third unit
Under the aircraft style plate, to lift single car, out&back, extend 900mm.

Forth unit
At the post in front of tire, out&back, extend 900mm.

Fifth unit
At the end post of trailer, only out, back by the cars' gravity, extend 1600mm.

Suspension
Mechanical steel suspension system, double axles type.
4 sets of leaf springs installed.

Brake sysem
Dual line air drum brake system with T30/30 type double brake chambers on each axle.

Light system
12v/24v light system.
LED lights, including side, rear, turning.

ABS system
ABS system installed, HN or Kemi brand.

Others
Color optional.
One set of standard tools in tool box.
One bag of belts for firming the cars.

2-Axle Car Carrier Trailer 18T-28T Capacity with ABS 0

2-Axle Car Carrier Trailer 18T-28T Capacity with ABS 1

Las etiquetas:

Main size	Overall length	15000mm
	Overall width	2700mm
	Overall height	3100mm
	Loading capacity	Loading 8 units of cars. Capacity of 25Tons.
Chassis	Main beam	Material of high strength steel T700. Height 400mm. Welded by automatic submerged-processes.
Chassis	Main cross beam	Material is high strength steel T700. Welded by automatic submerged-arc processes
Posts	Main posts	Material of high tensile steel T700. 5 pairs of each trailer
Posts	Side bars	Material is high strength steel T700. Multi numbers installed.
Floor	Material	Manganese steel plate floor thickness of 3mm. Multi holes designed. Yellow and red painted track.
Landing gear	20T model landing gear, brand Yahua, with static capacity of 50T. Single speed linked type, operated at one side.
King pin	2 inches size, installed on the kingpin plate. JOST brand.
Axle	2 sets of 13T model axles. Axle beam 1840mm. Axle loading 13000kgs.
Tire	Tire sized 10R22.5, Double Star or Triangle brand. 4 sets of tires assembled with wheel rim per trailer.
Wheel rim	Sized 8.0-20, Zhengxing brand. 4 pcs of wheel rim per trailer.
Hydraulic Cylinders	5 units (2 sets of each unit) of hydraulic cylinders installed, to lift the second floor and cars. Youggu brand.
	First unit	At the front post, out&back, extend 600mm.
	Second unit	At the end post of gooseneck, out&back, extend 600mm.
	Third unit	Under the aircraft style plate, to lift single car, out&back, extend 900mm.
	Forth unit	At the post in front of tire, out&back, extend 900mm.
	Fifth unit	At the end post of trailer, only out, back by the cars' gravity, extend 1600mm.
Suspension	Mechanical steel suspension system, double axles type. 4 sets of leaf springs installed.
Brake sysem	Dual line air drum brake system with T30/30 type double brake chambers on each axle.
Light system	12v/24v light system. LED lights, including side, rear, turning.
ABS system	ABS system installed, HN or Kemi brand.
Others	Color optional. One set of standard tools in tool box. One bag of belts for firming the cars.
