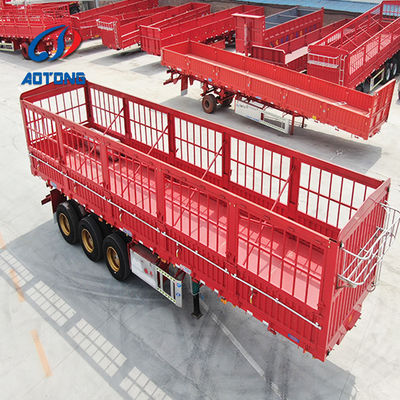

FENCE semi trailer is based on flatbed semi trailer design and built with side walls and container twistlocks, which can transport not only containers, but also bulk cargos.

1>High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.

2>The most skilled workers make welding of this flatbed trailer more frequent and strong.

3>Two pieces spare tire carriers, water tank, fuel tank etc, are optional accessories which build modern transportation.

4>We have standard side wall semi trailer which is with 3 axles and 50 tons loading capacity and 600mm height side wall. Meanwhile, we can have your trailer customised with options.

*Overall Dimension(LWH)*	*7200 / 12400 / 130002500 (fence height 1600 /1800)*
Tare Weight	7.5t
Axle	13T/16P, 2 / 3 / 4 pcs: BPW or FUWA or Yonglitai or Huajin Brand
Leaf Spring	*9013-10, 6/8 sets, FUWA alxe Funiu alxe Taiyue axle etc.**
Suspension System	Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type)
Main Beam	Material: Q 345 Carbon Steel
	Beam height: 500 mm
	Upper plate: 14 mm
	Bottom Plate: 16 mm
	Middle: 6/8 mm
Side Beam	14# / 16# / 18# channel steel (Q235)
Cross Member	8# / 10# / 12# channel steel (Q235)
Platform	3mm checker plate or flatbed
Side Wall Height	600mm/800mm/1000mm etc.
Tire	12R22.5-18, 12units
Landing Gear	Standard 28Ton, JOST or FUWA etc.
Brake system	WABCO available. 4 sets T30/30+2 sets T30 chamber; Two 40L tanks, ABS Optional
Electrical System	Voltage:24V, LED lights
	Tail light, brake light & reflector, side lamp etc.
	Receotacle:7 ways (7 wire harness)

Frequently Asked Questions

Does your company have your own factory?

Yes, we have our own factory in Shandong, China, specializing in trailer manufacturing for several years. Our facility is well-known for producing various types of trailers.

What is your minimum order quantity?

One unit.

Can you satisfy my special requirements?

Absolutely! We can customize trailers according to your specific requirements.

What logistics methods do you offer for transportation?

We provide multiple transportation options:

Primary method: Shipping by container or ro-ro/bulk vessel
For neighboring countries: Road or rail transport
For urgent spare parts: Express shipping via DHL, TNT, UPS or FEDEX

Do you offer any additional services?

Our comprehensive services include competitive pricing, shipping and packaging solutions, cargo hold booking assistance, and parts procurement support.

Send your inquiry to begin our partnership. Our expert team is ready to assist you throughout the process.

Email: juyuan@aotongtrailer.com

Phone: +86 139 6962 7783

With over 30 years of trailer manufacturing experience, we've earned your trust through quality and reliability.

Las etiquetas:

fence trailer,

DETALLES DE LOS PRODUCTOS

Productos

Semi-remolque con lecho bajo

Semiremolque de contenedor

Remolque de la pared lateral semi

Semiremolque de transporte de vehículos

Semiremolque de descarga y desviación

Semi-remolque lateral de Van&Curtain

Cerca Semi Trailer

Semiremolque para el transporte de animales

del petrolero remolque semi

Remolque agrícola y otro remolque completo

El camión Howo

cabeza del tractor

Trailer especial

Partes de repuesto de remolque

Nuevos vehículos de la energía

Vehículos especiales

Fence Semi Trailer with Mechanical or Air Suspension 12R22.5 Tyres

Cuota De Producción:	1 unidad
Embalaje Estándar:	Normas de exportación
Período De Entrega:	25 días
Método De Pago:	T/T

Información detallada

Descripción del producto

Información detallada

Lugar de origen

Porcelana

Nombre de la marca

AOTONG

Certificación

ISO,CCC

Suspensión:

Suspensión mecánica o de aire

Especificaciones del neumático:

12R22. ¿Qué quieres decir?5

Haz principal:

Trabajo pesado.

El pin de la familia:

Tipo de tornillo 2/3.5

Sistema de frenado:

Cámara de aire doble, válvula de freno, depósitos de aire de 45L; ABS opcional

Eléctrico:

Luz LED, 7 direcciones, 24V

Cuadro:

Rehacer y limpiar el óxido, 1 capa de pintura de primera calidad, 2 capas de pintura de acabado

Cantidad de orden mínima:

1 unidad

Detalles de empaquetado:

Normas de exportación

Tiempo de entrega:

25 días

Condiciones de pago:

T/T

Resaltar

Fence semi trailer with mechanical suspension

Fence semi trailer with air suspension

Fence semi trailer 12R22.5 tyres
