Fence Cargo Semi Trailer(Customerize and OEM Service Available)
Application	Coal/ Livestock/Vegetable/Cargo Loading
Product Name	2 axles fence semi trailer	3 axles fence semi trailer	4 axles fence semi trailer
Size	9500/1100025002800/3800 (mm)	12500/1300025002800/3800 (mm)	12500/1300025002800/3800 (mm)
Payload	30-60Ton	30-80Ton	40-100Ton
Main beam	Height: 500mm, upper plate is 12mm, middle plate is 6mm, down plate is 14mm ; Material is Q345B Steel.	Height: 500mm, upper plate is 16mm, middle plate is 10mm, down plate is 18mm ; Material is Q345B Steel.	Height: 500mm, upper plate is 18mm, middle plate is 12mm, down plate is 20mm ; Material is Q345B Steel.
Axles	2*13T/16Ton/ FUWA/BPW/Other	3*13T/16Ton/FUWA/BPW/Other	4*13T/16Ton / FUWA/BPW/Other
Side Wall Height	600mm-1700mm (can be customized)
Side beam	16mm channel steel (Material is Q235B steel)
Bottom Platform	3mm checquered steel plate
Suspension	Mechanical suspension (Air suspension optional)
Leaf spring	90(width)mm13(thickness)mm10 layer(especial for exporting market)
Tire	12R22.5 / 11.00R20 8/12pcs (Other size optional)
Rim	9.00-22.5 / 11.00R20 8/12pcs (Other size optional)
Kin pin	Jost brand 2.0 or 3.5 inch
Landing gear	Jost brand 28Ton two speed
Braking system	Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks
Electrical	LED light , 7 ways ,24V
Tool box	One piece 1m 0.5m0.5m ( size can be customized)
Twist locks	Optional
ABS	Optional
Painting	1.Sand blasting processing clean rust.2.Coat of anticorrosive primer. 3.Coats of finish urethane paint. 4.Color as customer choice.
Shipping terms	By bulk vessel, RORO, or 40HQ container

Fence Semi Trailer with Mechanical or Air Suspension 12R22.5 Tyres 0

Frequently Asked Questions

Does your company have your own factory?

Yes, we have our own factory in Shandong, China, specializing in trailer manufacturing for several years. Our facility is well-known for producing various types of trailers.

What is your minimum order quantity?

One unit.

Can you satisfy my special requirements?

Absolutely! We can customize trailers according to your specific requirements.

What logistics methods do you offer for transportation?

We provide multiple transportation options:

Primary method: Shipping by container or ro-ro/bulk vessel
For neighboring countries: Road or rail transport
For urgent spare parts: Express shipping via DHL, TNT, UPS or FEDEX

Do you offer any additional services?

Our comprehensive services include competitive pricing, shipping and packaging solutions, cargo hold booking assistance, and parts procurement support.

Send your inquiry to begin our partnership. Our expert team is ready to assist you throughout the process.

Email: juyuan@aotongtrailer.com

Phone: +86 139 6962 7783

With over 30 years of trailer manufacturing experience, we've earned your trust through quality and reliability.

Las etiquetas:

fence trailer,

DETALLES DE LOS PRODUCTOS

Productos

Semi-remolque con lecho bajo

Semiremolque de contenedor

Remolque de la pared lateral semi

Semiremolque de transporte de vehículos

Semiremolque de descarga y desviación

Semi-remolque lateral de Van&Curtain

Cerca Semi Trailer

Semiremolque para el transporte de animales

del petrolero remolque semi

Remolque agrícola y otro remolque completo

El camión Howo

cabeza del tractor

Trailer especial

Partes de repuesto de remolque

Nuevos vehículos de la energía

Vehículos especiales

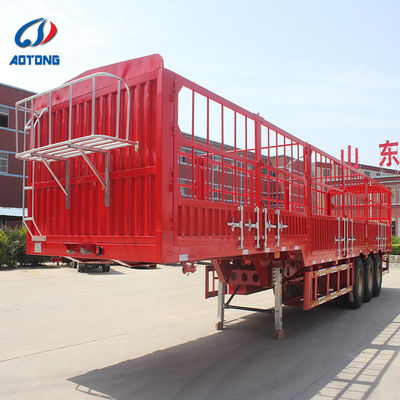

Fence Semi Trailer with Mechanical or Air Suspension 12R22.5 Tyres

Cuota De Producción:	1 unidad
Embalaje Estándar:	Normas de exportación
Período De Entrega:	25 días
Método De Pago:	T/T

Información detallada

Descripción del producto

Información detallada

Lugar de origen

Porcelana

Nombre de la marca

AOTONG

Certificación

ISO,CCC

Suspensión:

Suspensión mecánica o de aire

Especificaciones del neumático:

12R22. ¿Qué quieres decir?5

Haz principal:

Trabajo pesado.

El pin de la familia:

Tipo de tornillo 2/3.5

Sistema de frenado:

Cámara de aire doble, válvula de freno, depósitos de aire de 45L; ABS opcional

Eléctrico:

Luz LED, 7 direcciones, 24V

Cuadro:

Rehacer y limpiar el óxido, 1 capa de pintura de primera calidad, 2 capas de pintura de acabado

Cantidad de orden mínima:

1 unidad

Detalles de empaquetado:

Normas de exportación

Tiempo de entrega:

25 días

Condiciones de pago:

T/T

Resaltar

Fence Semi Trailer with mechanical suspension

Fence Semi Trailer with air suspension

Fence Semi Trailer 12R22.5 tyres
